Specification
CPU Intel Core i5-3317U 1.7GHz (Dual Core, 3MB cache)
Intel Core i7-3517U 1.9GHz (Dual Core, 4MB cache)
Intel Core i3-3217U 1.8GHz (Dual Core, 3MB cache)
Intel Celeron 847E 1.1GHz (Dual Core, 2MB cache)
Core i CPU w/ BGA1023 package and 17W TDP
Chipset Intel BD82HM65 PCH
Graphics ?Intel Core i7-3517U /Core i5-3317U /Core i3-3217U: Intel HD Graphics HD 4000
Celeron 847E: Intel HD Graphics
Memory 8GB maximum, x 2 DDR3 SODIMM,1066/1333MHz,2GB/4GB/8GB

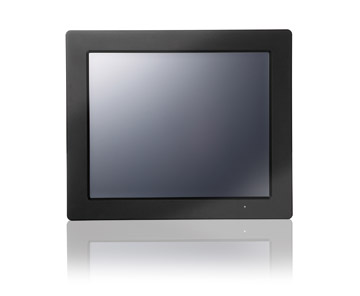

Touch-screen 17” / 5-wire resistive / 1280 x 1024/ 380 nits/ CCFL backlight / 50,000 hours life time

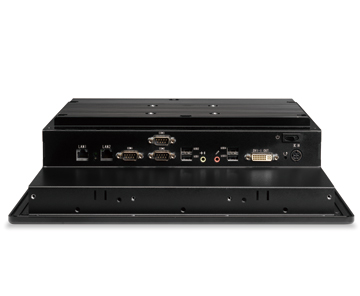

External I/O USB 2.0 x 4
COM x 3 (RS232x 2,RS232/422/485 Support: RS485 auto flow control)
Giga LAN x 2
DVI-I output x 1
3.5mm Audio jack x 2 (Line-out, and Mic-in)
DC-In x 1 6V~32V
Reset button x 1
Storage HDD 2.5” SATA HDD drive bay x 1 + anti-vibration kit, 320GB / 500GB
Expansion Mini PCIe x 2 (52 pin card-edge type)
Regulations FCC-A, CE(EMC), VCCI, UL
Size 426.2 x 358.6 x 90 mm (W x H x D)
Weight 8.5 Kg (approximate, w/o power adaptor)
Ordering information ?Core i5 1.7G / Core i7 1.9G / Core i3 1.8G / Celeron 1.1G
Memory: 2G / 4G / 8G
HDD: 320G / 500G
Panel mount bezel: Black / Silver / Stainless steel

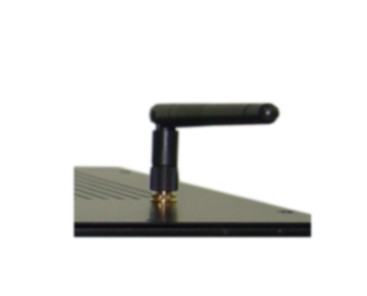

WLAN: None / x 1
|
