Model ID: EB-25PC
| O/S |
Linux Ubuntu 9.04 preinstalled, drivers for Windows/Linux operating systems included |
| CPU |
Intel Atom N2600, 1.6GHZ |
| Chipsets |
North bridge: Intel NM10 |
| RAM |
1*2GByte DDR3-1333 |
| Hard Drive |
32GByte 2.5 Inch SATA2 SSD |
| Graphic |
Intel GMA3650,640MHz |
| Audio |
Realtek HD ALC 269Q, 2*2W Loudspeaker |
| LAN |
Realtek RTL8111E, 2*10/100/1000MBit RJ45 Ports |
| USB |
7* USB 2.0 ports, 4 as external |

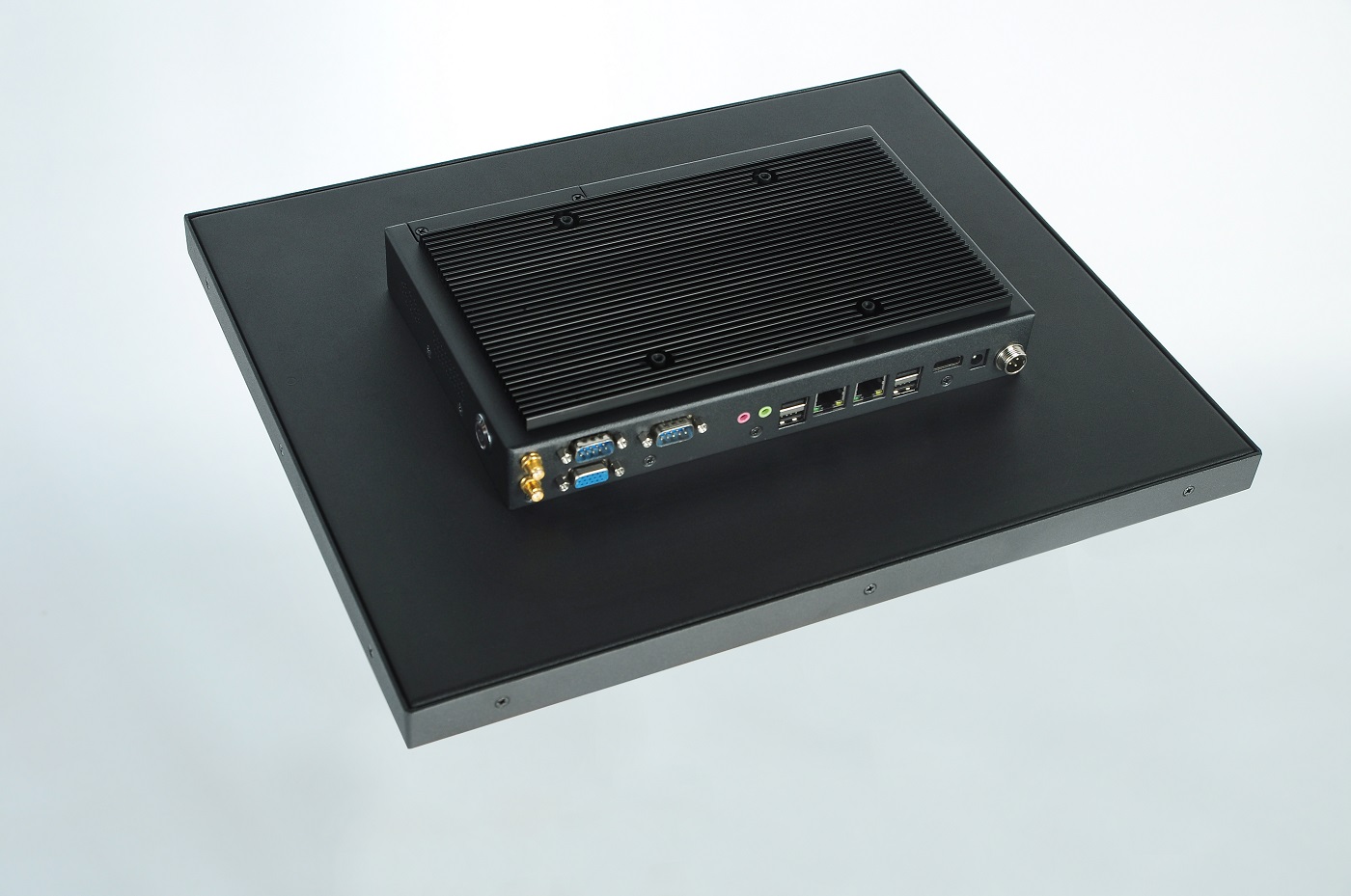

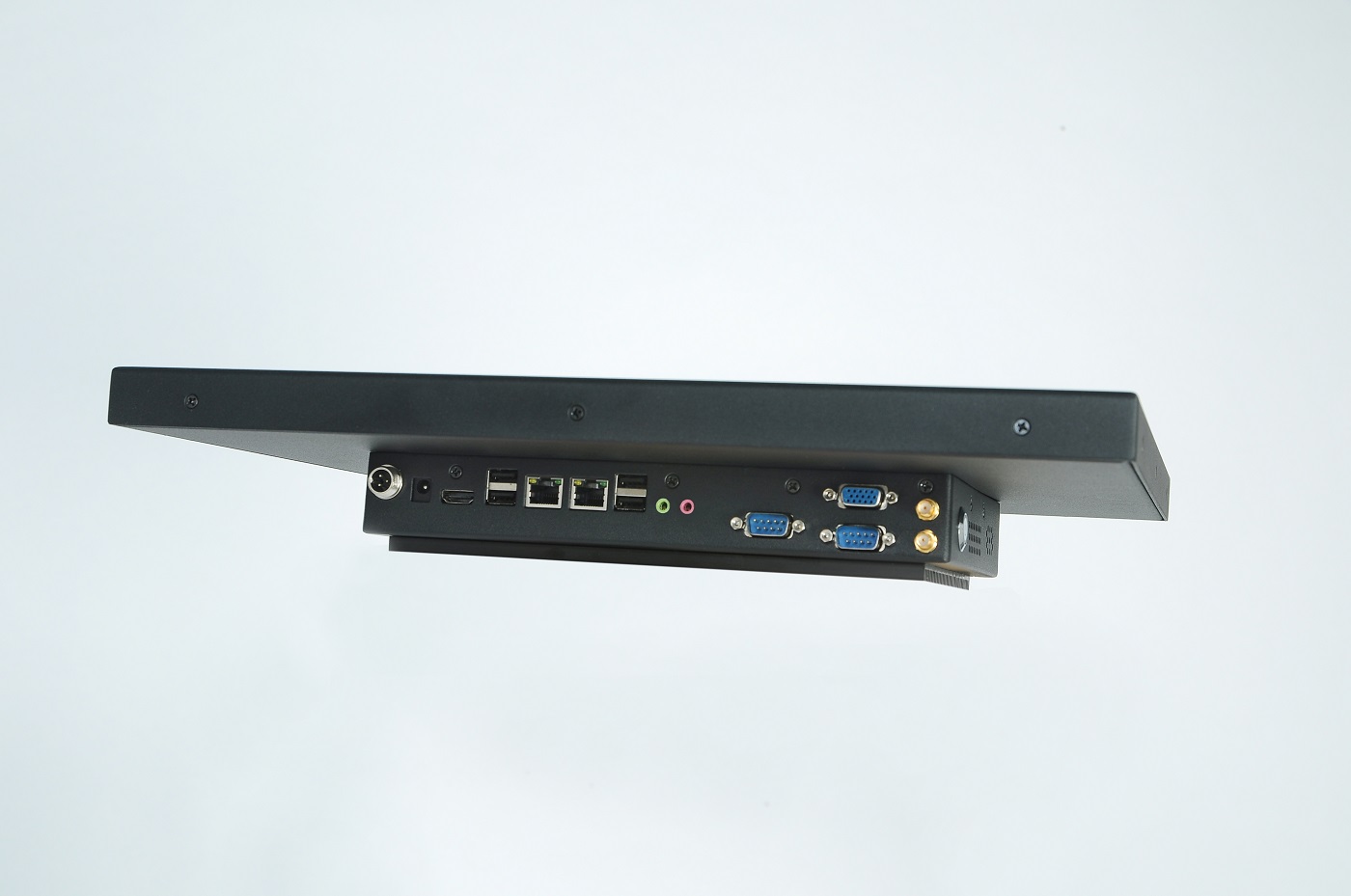

| External Ports |
HDMI |
|
4*USB 2.0 |
|
|
2* COM/RS232 （1 RS232 replaceable for RS422/485） |
|
|
2*RJ45 |
|
|
VGA |
|
|
Audio-in/ Audio-out |
|
|
W-LAN-Antenna connectors |
|
|
Power on/off |
|
|
2*12V DC-in(1*screwable) |
|
| Internal port |
2*Sata 300MB/S (1*MSATA) |
|
1*MiniPCI-E |
|
|
1*VGA |
|
|
3* USB2.0 |
|
|
1* Front panel Audio header(for loudspeaker) |
|
|
1* Front panel header |
|
|
Power consumption(W) |
36 |
|
Stand-By-Consumption (W) |
≤1 |
|
Input Voltage |
11-13V DC-in |
|
Operating Temp. |
-10℃ to +60℃ |
|
Storage Temp |
-20℃ to +70℃ |
|
Driver |
Windows, Linux; Linux Ubuntu 9.04 preinstalled |
|
Display(mm) |
305.5x229.5 |
|
Aspect Ratio |
4:3 |
|
Physical Resolution |
1024（W)*768(H) |
|
Maximum knowable resolution |
1920（W)*1200(H) |
|
Luminance(cd/㎡) |
250 |
|
Contrast Ratio |
800:1 |
|
React time |
2ms/6ms |
|
Visual angle h:v(°) |
160;160 |
|
Touch Panel |
5 wire resistive touch |
|
Touch Panel Driver |
Windows, Linux, Marc |
|
React time touch panel |
<10 ms |
|
Surface Hardness |
3H |
|
Input Force(g) |
20-150 |
|
Power Supply |
AC100-240V,DC12V |
|
Cooling System |
Fanless |
|
Front Panel |
IP65 |
|
Install |
support Panel,Wall,Rack,Stand,Arm VESA100 (optional) |
|
Case |
Aluminum |
|
Size(WxHxD)(mm) |
368x288x62.8 |
|
|
|
|
Optional |
W-lan optional |
|
Saw touch panel |
|
|
IP65 class |
|
|
ITPS |
|
|
Luminance(400cd/㎡ , 600cd/㎡ ) |
|
|
6-36V power supply |
|
|
Advanced RAM and SSD/HDD |
