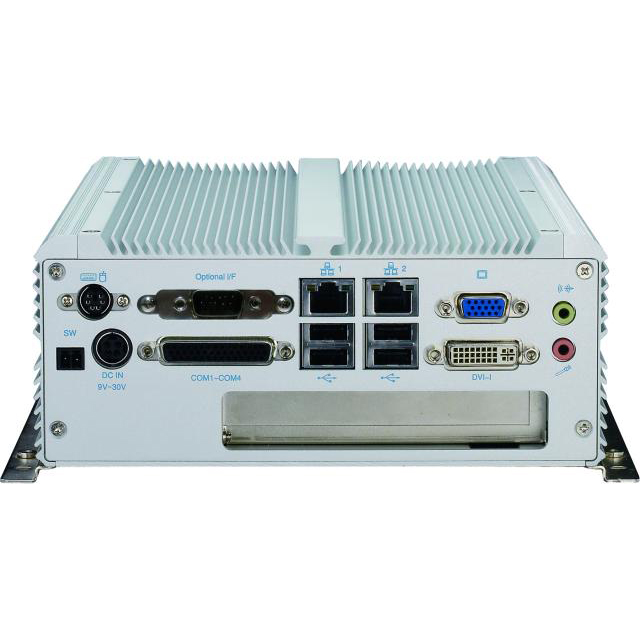

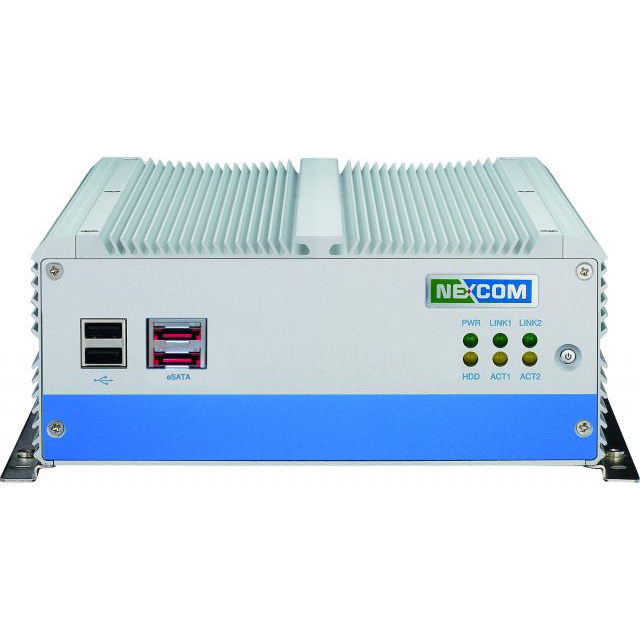

| Main features | - Support Intel® Core™ i7/i5 socket processor - Mobile Intel® QM57 PCH - Dual Intel® Gigabit Ethernet ports - Dual VGA or VGA/DVI Independent Display - 3 x RS232 and 1 x RS232/422/485 with Auto Flow Control - 4 x Digital Input, 4 x Digital Output - On-board DC to DC power design to support 9V to 30V DC power input - Support ATX power mode and PXE / WOL |
| Mainboard | NISB3500 |
| CPU | Intel Core i 7 |
| Max. Frequency | 1.86 GHz 2.4 GHz 2.66 GHz |
| Compatible CPU | Intel Core i 5 Intel P4500 |
| Max RAM | 4 |
| COM ports | 4 |
| - RS232 | 3 |
| - RS232/422/485 | 1 |
| PCI/PCIe/Mini-PCIe | 1 |
| - PCI | 1 |
| USB | 6 |
| LAN | 2 |
| Serial | 4 |
| Video Output | VGA DVI |
| Memory Type | DDRIII 800 / 1066 DIMM |
| Audio | 2 CH |
| Power input range | 9 -30 DC |
| Dimensions W | 195 |
| Dimensions D | 268 |
| Dimensions H | 80 |
| Temperature Min | -5 |
| Temperature Max | 55 |
