| CPU Support | OnBoard 3rd generation Intel® Core™ i7 BGA processor Core™ i7-3517UE, Dual Core, 1.7GHz, 4M CacheMobile Intel® QM77 PCH |
| Main Memory | On-board 2x DDR3/DDR3L SO-DIMM, supports up to 8GB DDR3/ DDR3L 1333/1600 SDRAM, with un-buffered and non-ECCPre-install 4G Industrial Grade Memory as the manufactureconfiguration for shipment |
| Display Option | Three Independent Display (only support on 3rd Generation Processor) - Two Display Port and 1x VGA - Two Display Port and 1x DVI-DDual Independent Display - VGA and DVI-D - Display Port and VGA - Display Port and DVI-D - Display Port and Display Port |

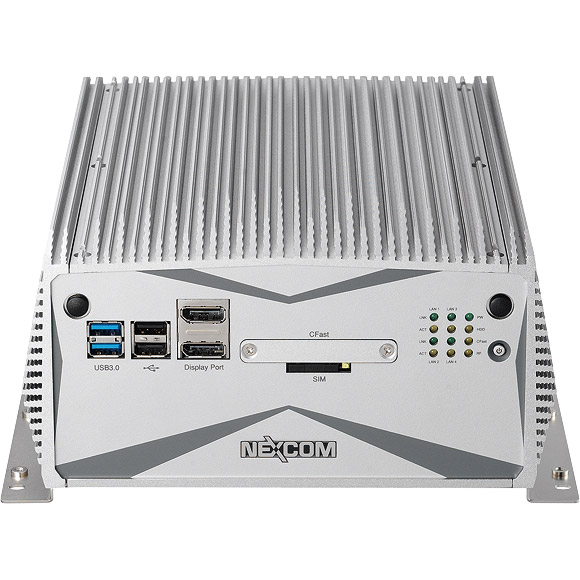

| I/O Interface-Front | ATX power on/off switchHDD access/ Power status/ LAN status LEDs2x USB3.0 (Blue color)2x USB2.02x Display Port (Can be converted to DVI-D or HDMI via active cables)1x CFast socket1x SIM card socket2x Antenna holes |

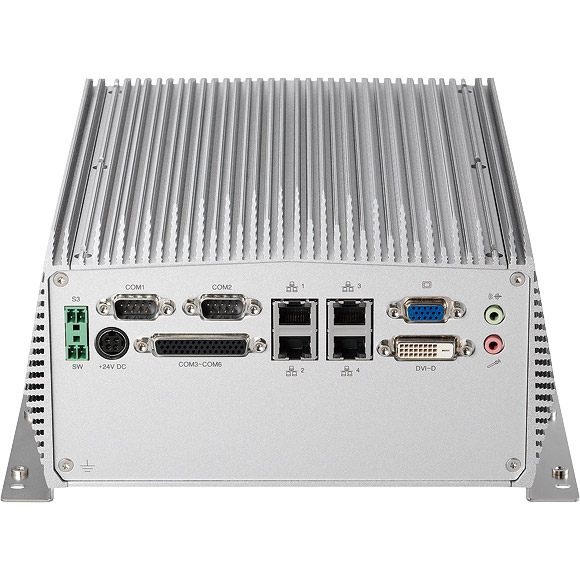

| I/O Interface-Rear | 2x DB9 for RS232/422/4851x DB44 for 4x RS2324x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE1x DB15 VGA port1x DVI-D1x Line out and 1x Mic-in2-pin Remote Power on/off switch+24VDC Input |
| Storage Device | 2x 3.5” SATA HDD1x CFast socket |
| Expansion Slot | 1x Mini-PCIe socket (support optional WiFi or 3.5G module) |
| Power Requirements | ATX Power modeSupport +24VDC InputOptional power adapter |
| Dimensions | To be defined |

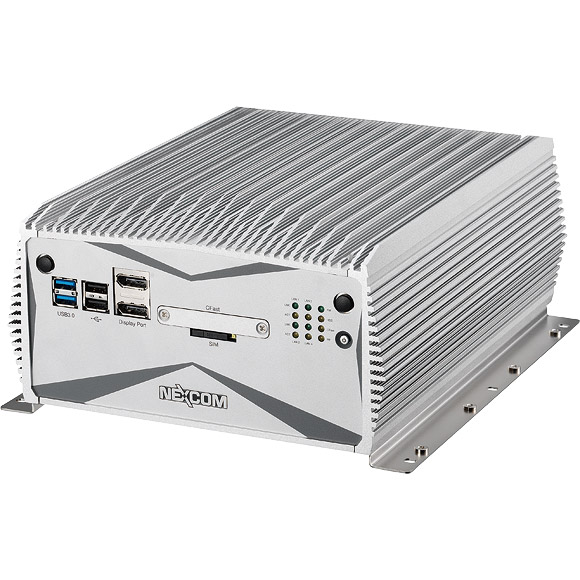

| Construction | Aluminum Chassis with fanless designVentilation holes on panels for HDD cooling design |
| Environment | onOperating temperature: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)Storage temperature: -30°C ~ 85°CRelative humidity: 95% at 40 degree CShock protection: 20G, half sine, 11ms, IEC60068-2-27Vibration protection Random: 0.5Grms @5~500 Hz according to IEC68-2-64 Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64 |
| Certifications | CE approvalFCC Class A |
